Περιγραφή
Small and powerful!

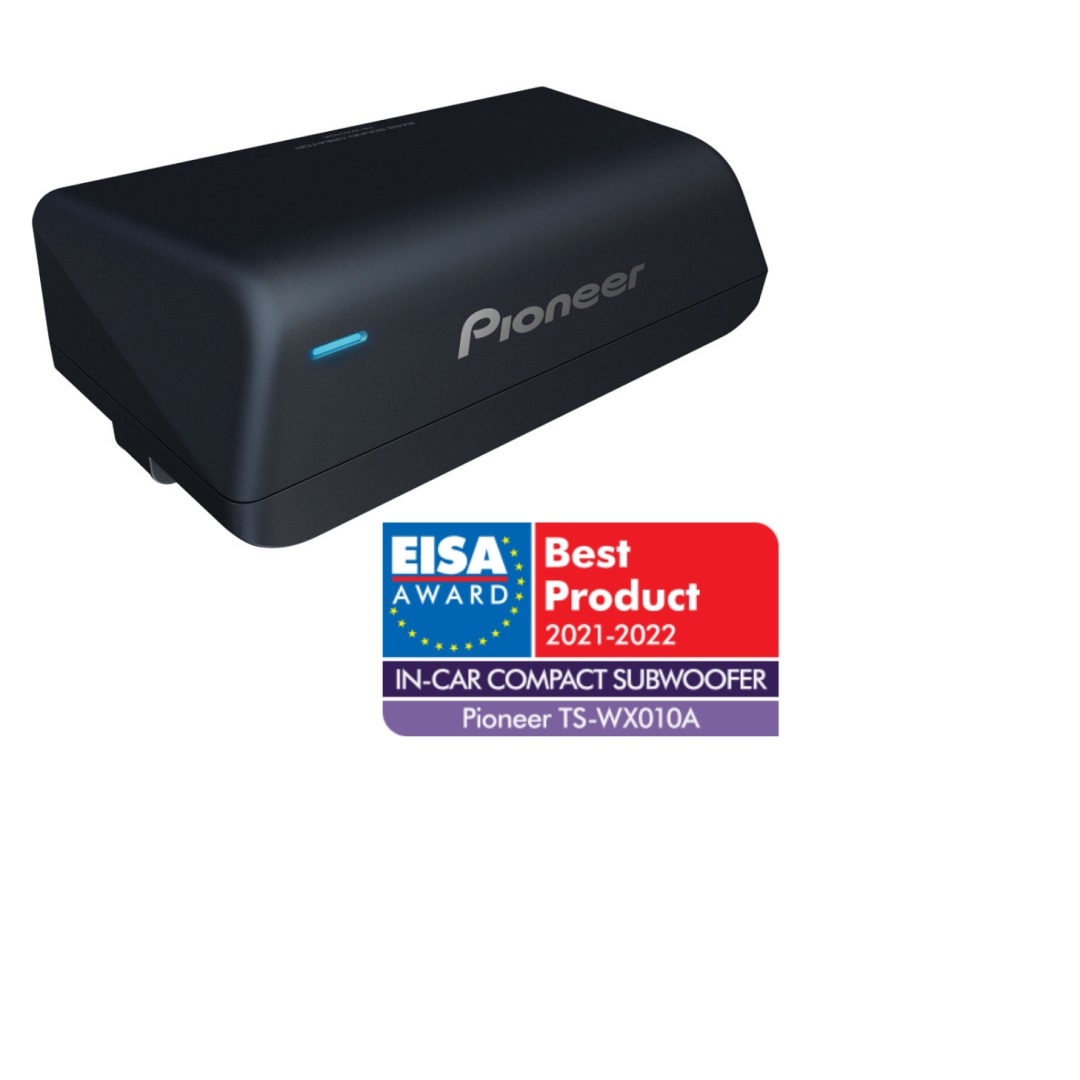

- Pioneer’s TS-WX101A is the smallest Active Subwoofer in its Active Subwoofer category. Designed to be installed in the passenger foot space area, TS-WX010A uses a Symbolic Trapezium design that can be easily installed vertically or horizontally.
- TS-WX010A gives a new sound experience, thanks to Pioneer’s BASS SOUND CREATOR feature that offers impactful and high quality bass sound, a built-in CLASS-D amplifier and a down firing subwoofer for effective reproduction of low frequencies, so you can really feel the bass.
- Furthermore, by installing in the passenger foot space area, it can improve the front sound imaging, by creating a natural sound connection with the front speakers, allowing you to experience a new sound experience.
- Pioneer’s TS-WX010A delivers 160 W Maximum Power and 50 W RMS Power.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
| EV Optimized | |
| CarSoundFit App | |
| BASS SOUND CREATOR | |
| Size | 17 cm x 8 cm |
| Type | Enclosed Sealed Active |
| Maximum power | 160 W |
| Continuous power output | 50 W |
| Frequency response | 20 Hz to 200 Hz |
| Sensitivity | 98 (Installed in foot space) dB |
| Function | Phase switch, Frequency control (50 Hz to 125 Hz), Gain control, Input Mode (High/Low) |
| Weight | 1.51 kg |
| Dimensions | 230 mm x 70 mm x 116 mm |
| Accessories | • Main Unit x 1 • Mounting Bracket x 2 • Under carpet installation bracket x 2 • Screws (φ5 mm x 14 mm) x 2 • Screws (M5 mm x 25 mm) x 2 • Power cord assembly (2.5 m) x 1 • Screw cover nut x 2 • Adhesive tape x 4 • Manual • Warranty document |
| Amplified Subwoofer |
